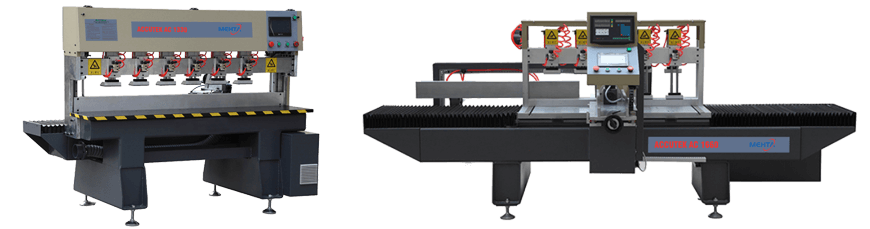

Overview Of Accutek: AC 1300-1600, AC 1360-1660

Diamond Edge Polishing System

When using diamond edge polishing, edges on acrylic sheets are moved over sharp, fast-rotating diamonds. Properly done is the result so good that diamond polishing can be compared with cast surfaces. Moreover, the method is relatively inexpensive and can be performed on large batches.

Diamond edge polishing may be used on edges of shelves and signs that have previously been sawn to correct dimensions.

It should be noted that diamond edge polishing is exclusively for straight or sloping sides. Eg. it cannot be used on rounded corners

Applications

Application Of Accutek: AC 1300-1600, AC 1360-1660

Technical specifications Of Accutek: AC 1300-1600

Models	Accutek AC 1300	Accutek AC 1600
Machine Size	2240mm x 1000mm x 1520mm	2540mm x 1300mm x 1520mm
Power Supply	AC 50~60HZ, 3ph 380V/220V	AC 50~60HZ, 3ph 380V/220V
Spindle Speed	9000~12000 rpm	9000~12000 rpm
Cutting Speed	0~2000mm/min.	0~2000mm/min.
Cutting Angle	0~40°	0~40°
The Size of Dust Mouth	100mm	100mm
Compressed Air	0.6~0.8Mpa	0.6~0.8Mpa
Machine Power	2KW	3KW
Machine Weight	1500Kg	1500Kg
Cutting Depth	0~2mm	0~2mm
Cutting Mode	Spindle Feeding	Spindle Feeding
Work Area	L 1300 mm(Infinite) T 100mm	L 1600 mm(Infinite) T 110mm
Above specifications are subject to change without prior notice

Technical specifications Of Accutek: AC 1360-1660

Models	Accutek AC 1360	Accutek AC 1660
Machine Size	3470mm x 2200mm x 1470mm	4100mm x 2200mm x 1470mm
Power Supply	AC 50~60HZ, 3ph 380V/220V	AC 50~60HZ, 3ph 380V/220V
Spindle Speed	9000~12000 rpm	9000~12000 rpm
Cutting Speed	0~2000mm/min.	0~2000mm/min.
Cutting Angle	0°	0~40°
The Size of Dust Mouth	100mm	100mm
Above specifications are subject to change without prior notice
