CNC Accessories
- Tool Grider
- Rotary Attachment
- Vacuum Bed System
With German Becker Pump - Vacuum Bed System
With Ring Type Blower - Dust Collector
Tool Grinder
 |
| Specifications | ||||
| Model NO. | METRIC | S.A.E. | ||
| Grinding Wheel | Diameter | 100 mm | 4" | |
| Length | 50 mm | 2" | ||
| Aperture (1) | 20 mm | 3/4" | ||
| Rotation Speed | 5200 RPM | 5200 RPM | ||
| Collect Capacity (2) | XM067 R8 5C |
3-16
mm 3-20 mm 1-28 mm |
1/8
- 5/8" 1/8 - 3/4" 1/32 - 1-1/8" |
|
| Tool Longitude Travel | 140 mm | 5½" | ||
| Tool Longitude Trimming travel | 18 mm | 3/4" | ||
| Spindle Longitude Trimming travel | 8 mm | 5/16" | ||
| Taper Angle | 0-180 degrees | |||
| Relief Angle | Negative Angle | |||
| Electrical | Power | 0.25 Kw | 1/3 HP | |
| Rotation Speed |
50
Hz 60 Hz |
2810
RPM 3600 RPM |
||
| Voltage (3) | 380
V 220 V 110 V |
|||
| Frequency | 50 - 60 Hz | |||
| Net Weight | 50 Kg | 110.1 lbs | ||
| Machine
Dimension (L x W x H) |
450 x 350 x 340 | 18" x 14" x 14" | ||
| Boxed
Dimension (L x W x H) |
480 x390 x 365 | 19" x 15" x 14¼" | ||
| The above specification is subject to change without prior notice | ||||

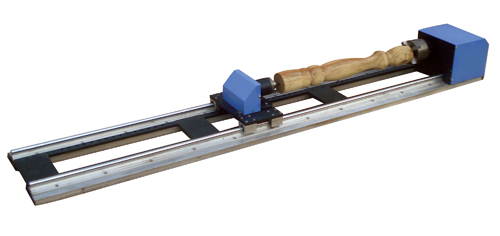

Rotary Attachment
Vacuum Bed System With German Becker Pump

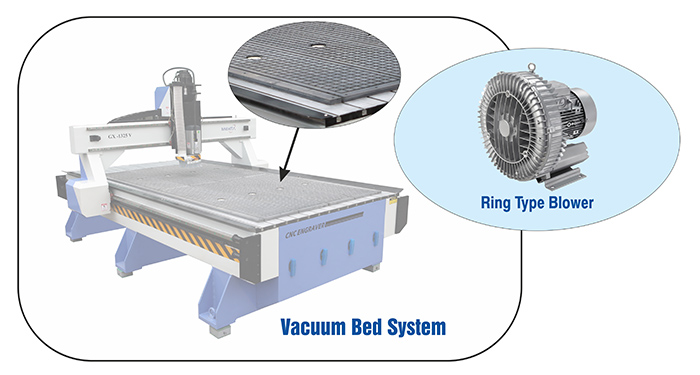

Vacuum Bed System With Ring Type Blower
Dust Collector
