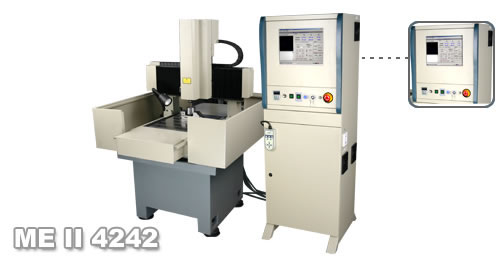

CNC Engraving Machine ME II 4242
Overview of CNC Engraving Machine ME II 4242
The machine is based upon an upgraded DX-3525 machie, which is one of earliest mould making machines in the market. This is an extremely popular model. To satisfy the needs of market, we increased the precision and the efficiency of this model. This is very sturdy machine with a high quality - price ratio It is equipped with a 1.5 kw spindle and a water coolant and can satisfy the basic mould making requirements. This machine is capable of making electrodes for EDM and steel mould dies.
Applications of Engraving Machine ME II 4242
 |
 |
 |
||
 |
 |
 |
||
Technical Specifications
| MODEL | UNIT | SPECIFICATIONS |
| Resolution | Millimeter / Pulse | 0.0025 |
| Main axle electrical Machinery | Watt | 1500 |
| Highest main axle electrical Machinery rotational speed | Revolutions / Minute | 24000 |
| Tool diameter | Millimeter | Ø3.175 Ø4 Ø6 |
| Highest movement speed (Stepper M/c.) | Meter / Minute | 3.0 |
| Floor Size ( X, Y ) | Millimeter | 440 x 540 |
| Biggest Cutting Size ( X, Y, Z ) | Millimeter | 420 x 420 x 150 |
| External Dimensions ( X, Y, Z ) | Millimeter | 1050 x 1300 x 1620 |
| Supply Voltage | Volt / Hz | AC220± 10% 50Hz |
| Weight | Kilogram | 650 |
| Power Loss | Kilowatt | 4.0 |
| Above Specifications are subject to change without prior notice | ||
