WD Galaxy laser welding machine
Overview Of GALAXY: WD

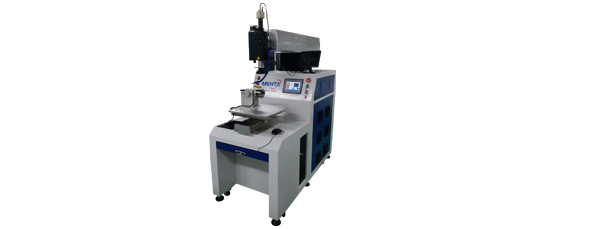

Galaxy WD 500 4 Axis laser welding machine with rotary jig and CNC control system is for welding Intersecting line, involute line, curve, point, the entire column and other arbitary trajectories. It is specialized R&D for precision welding industry with high magnification system and well received by customers.
Application Of GALAXY: WD
Suitable for welding of kettle, vacuum cup, stainless steel bowl, sensor, tungsten wire, high power diode (triode), aluminum alloy, laptop shell, mobile phone battery, door head, zinc alloy artwork.
Capable of welding spot, straight seam, circle, square or any plane graphs drawn by AUTOCAD, or even dimensional graphs.
 |
 |
 |
 |
 |
 |
 |
 |
 |
Technical specifications Of GALAXY: WD
| Models | WD300 | WD400 | WD500 |
| Laser Power | 300W | 400W | 500W |
| Laser Wavelength | 1064nm | ||
| Laser Welding Depth | ≤4mm | ||
| Pulse Width | ≤20ms | ||
| Laser Welding Frequency | ≤100Hz | ||
| Adjusting Rang of Light Spot | 0.1-3.0mm | ||
| Size of Light Spot | 0.2-3.0mm | ||
| Power Consumption | 12KW | 14KW | 16KW |
| Power Supply | 380V / 50/60Hz | ||
| Min. Bearing of Standard Work Bench | ≤100Kg | ||
| Stroke of Work Bench | 200*200mm ~ 1200*1200mm | ||
| Repeating Precision of Work Bench | ±0.01mm | ||
| Positioning Precision of Work Bench | ±0.02mm | ||
| Sighting Positioning System | Red light, CCD Monitor System (Optional Rotary Clamp) | ||
| Cooling Method | Water Cooling | ||
| Master Unit Dimensions | 1600*800*1800mm | ||
| Above specifications are subject to change without prior notice | |||
