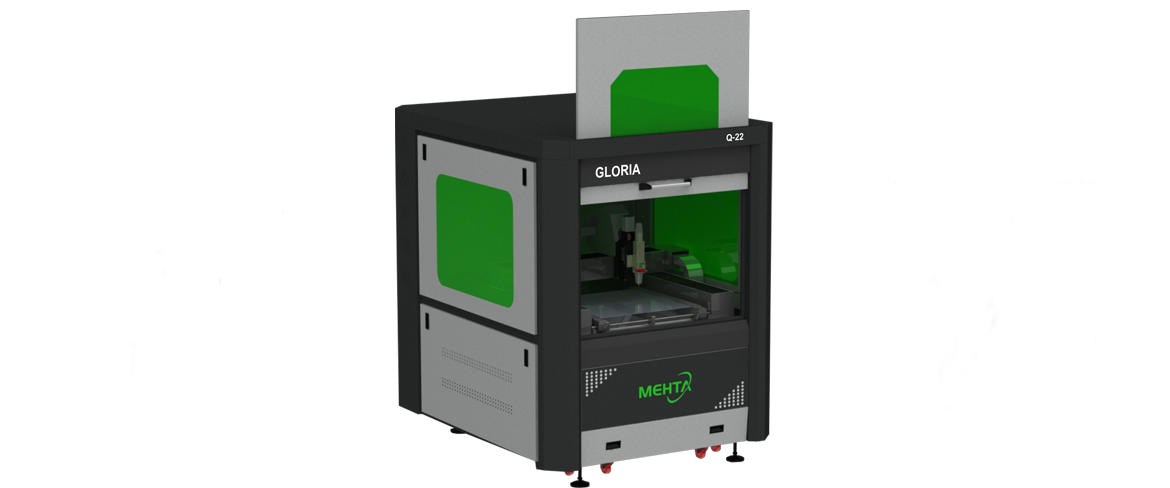

Gloria Fiber Laser Metal Cutting M/c
Overview
Q22 Is Special For High Precision Machinery Parts And Microelectronics And Jewelry Industries. Q22 Is Very High Speed And Higher Precision Professional Machine For Cutting Thin Metal Sheet Like Stainless Steel, M.S., Carbon Steel, Galvanized Steel, Copper, Aluminum, Brass, Gold, Silver Etc.
Applications of Fiber Laser Cutting Machine Gloria Series
 |
Technical Specifications of Laser Engraving Machine Gloria Series
| Model | GLORIA-Q22 | ||
| Working Area | 600 x 600 mm | ||
| Operation Mode | CW/Pulse | ||
| Max. Average Power (W) | 150 (Pulse), 210 (CW) | ||
| Max. Peak Power | 1500 W | ||
| Polarization State | Random | ||
| Repetition Rate | 1-5000 Hz | ||
| Pulse Duration | ≤ ± 0.1 - 50 ms | ||
| Max. Pulse Power | 15 J | ||
| Emission Wavelength | 1080 nm | ||
| Line Duration | < 15 nm | ||
| Output Power Unstability | < 3% | ||
| Red Guide Laser Power | 0.5 ~1 mW | ||
| Cutting Head | BT-230Cut | ||
| Max. Cutting Speed | 30000 mm/min (Adjustable according to different cutting thickness) | ||
| Position Accuracy | ±0.04 mm | ||
| Minimum Line Width | < 0.12 mm | ||
| Cooling System | Water Cooling | ||
| Driving System | AC Servo Motor and Drivers | ||
| Transmission | X, Y, Z Axis all with imported ball screw. | ||
| Working Voltage | 380V/220V | ||
| Total Power Consumpted | 18 KW | ||
| Specifications are liable to change without prior notice. | |||
