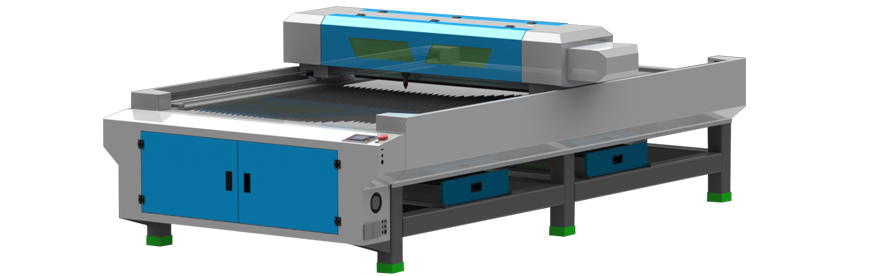

Eva 48 Laser Engraver

Features of Eva 48

Pass Through Design for long length of work piece in Y-axis direction
Machine is Provided with Foot-mounting legs so that there is no vibration in machine can be adjusted on zero level.
As it is made in india No waiting period for spare parts & quick service support
Machine is provided with heavy duty compressor which has Air-assist combining adjustable focus systems in coaxial jet air to prevent cutting edge from burning down
Laser cut software with window based software enhance cutting speed & angle / curve performance
Laser seals the edges of fabric while cutting
Maximum cutting thickness of arcylic - 25mm
High quality of chiller unit for better performance and long life of laser tube.

Acrylic Engraving Acrylic Engraving Acrylic Engraving Acrylic Cutting Acrylic Cutting Paper Cutting MDF Cutting MDF Cutting User Friendly Control Panel User Friendly Control Panel

Applications of Eva 48

LEO Laser Cutting Applications LEO Laser Cutting Applications LEO Laser Cutting Applications
LEO Laser Cutting Applications LEO Laser Cutting Applications LEO Laser Cutting Applications
LEO Laser Cutting Applications LEO Laser Cutting Applications LEO Laser Cutting Applications
Libra Appliction LEO Laser Cutting Applications

Technical Specifications of Eva 48

Model Eva 48 Eva 43 Eva 32 Eva 21
X, Y Cutting Area 4’ x 8’ (1220 mm x 2440 mm) 4’ x 3’ (1220 mm x 918 mm) 3’ x 2’ (918 mm x 610 mm) 2’ x 1.5’ (600 mm x 450 mm)
Laser Power 80 W / 100 W / 130 W 80 W / 100 W 80 W / 100 W 40 W / 60 W
Travelling Speed 400 mm/s
Reposition Accuracy 0.02 mm
Minimum Letter Size 1 mm (English Font)
X Y Movement System Belt Transmission
Z - Axis Movement 180 mm (optional
Power Adjustment 1 to 100 %
Maximum Cutting Thickness Up to 20 mm Acrylic Up to 15 mm Acrylic Up to 15 mm Acrylic Up to 12 mm Acrylic
Driving System Stepper Motor
Operating System Win 7 32 bit
Interface USB interface, Ethercad
Supported Format PLT, DXF, BMP, JPG, AI
Working Voltage Single Phase 220V/50Hz (Required Earthing)
Running Environment 45°C, Humidity 5% - 80%
Operating Display 16 Key with Graphic Display
Memory Buffer 256 MB
Overall Dimension 3440 x 2172 x 1030 mm 1835 x 1465 x 1085 mm 1535x 1165 x 1085 mm 1355 x 1005 x1085 mm
Weight 860 Kg 332 Kg 243 Kg 190 Kg
Power Consumption 2 KW 1.2 KW
Above Specifications are subject to change without prior notice.
