Overview of GEM - RX5 Engraving & Marking Machine
• Flat Engraving Surface (9.4" x 5.2")
• Maximum Vice Opening (16.5")
• Inside and Outside Cylindrical Engraving
• 10.5" Diameter Cylindrical Engraving

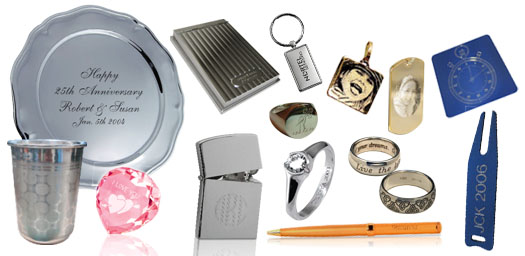

Applications of GEM - RX5 Engraving & Marking Machine
Technical Specifications of GEM - RX5 Engraving & Marking Machine
Flat work size |
9.5" X 5.0" ( 240mm x 132mm) |
Cylindrical work size |
10.5" (265mm) diameter |
Z-axis travel |
2.17" (55mm) |
Z axis clearance |
4.3" (110mm) top of jaws, 11.0" (280mm) top of beam |
Maximum vice opening |
16.6" (422mm) |
Spindle Motor Speed |
18,000 RPM |
Power of spindle motor |
100W, 24W Brushless Hall Effect DC motor |
Dimensions |
24"H x 16.5"W X x.33"L (610mm x 420mm x 840mm) |
Total Weight |
68 Kg |
All above specifications are subject to change without prior notice. |
