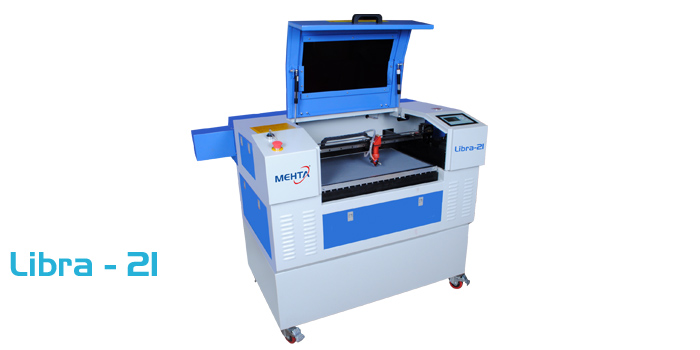

Libra- 21 - Laser Engraving & Cutting Machine
Features of Laser Engraving Machine Libra-21
- Libra 21 is with high speed USB and offline control system, the split frame structure, working is stable and reliable, it has wide range of application and economical – utility model.
- Libra 21 is of high accuracy, fast, stable performance, simple operation and easy maintenance.
- Libra 21 can engrave and cut variety of non-metallic materials like Acrylic, MDF, Paper, Fabric, Leather etc.
- Libra 21 is best for Letter Cutting, Trophy and Awards, Plaques, Gifts, Photo Album Cover etc.
 |
 |
 |
| HONEY COMB TABLE | CARRIAGE | CHILLER |
Applications of Laser Engraving Machine Libra-21
 |
 |
 |
 |
 |
 |
 |
||
Technical Specifications of Laser Engraving Machine Libra-21
| Model | LIBRA-21 |
| Working Area | 600 x 400 mm |
| Laser Type | Sealed-off Glass CO2 Laser Wavelength : 10.6um |
| Laser Power | 60 W |
| Laser Tube Cooling | Water Cooling |
| Control System and Driver | High Speed DSP Control System, Stepper Motor, High Sub division driver |
| Engraving Speed | 0-900 mm/s |
| Cutting Speed | 0-400 mm/s |
| Reposition Accuracy | <±0.01 mm |
| Minimum Letter Size | 1 mm (English Fonts) |
| Machine Power | ≤1000 W |
| Supported Format and Software | PLT, DST, DXF, BMP, AI, Support AutoCAD, CorelDraw output directly |
| Working Environment | Temperature: 0-45°C. Humidity : 5%-95% (No condensed water) |
| Voltage | AC220V/110V±10%, 50HZ/60HZ |
| Above Specifications are subject to change without prior notice. | |
